Solar power stand , sales of building materials such as original bracket
This is the Japanese manufacturer of aluminum solar mount systems.
We manufacture and sell mount systems with high quality and simple mounting.
We are actively going to provide them to overseas Customers.
ALU-TERRAIN RAC
aluminun ground mount system (pile-driven foundation required)
Adaptable to a wide variety of conditions,
whether it be a large scale or small
Easy to mount and short mounting times
Aluminum mount system and Galvanized ground screw
Excellent congeniality between aluminum mount system of type W and gound screws
Planning
We design, plan and produce customized mount systems meeting the Customer's request on plans of installation and angle.
Ground screw
Variety of shapes of ground screws. Screws with lenght of 1200 mm to 2500 mm are available.
Manufacturing process of ground screw
Copper pipes, with 2 m length, a diameter of 7cm and thickness of 3mm, are heated at high temperature, and then are inserted into the large sharper. It's not for sharpening but for striking the head.
By striking, a head of the pipe will double or increase more in thickness.
If the head became sharp by heat, go on to welding of screw thread.
Welding is done by semi-automatic machine, including welding of the base plate.
Finished after galvanizing!
For corrosion prevention, the inside of ground screw is also galvanized.
We provide you our products with all sincerity!

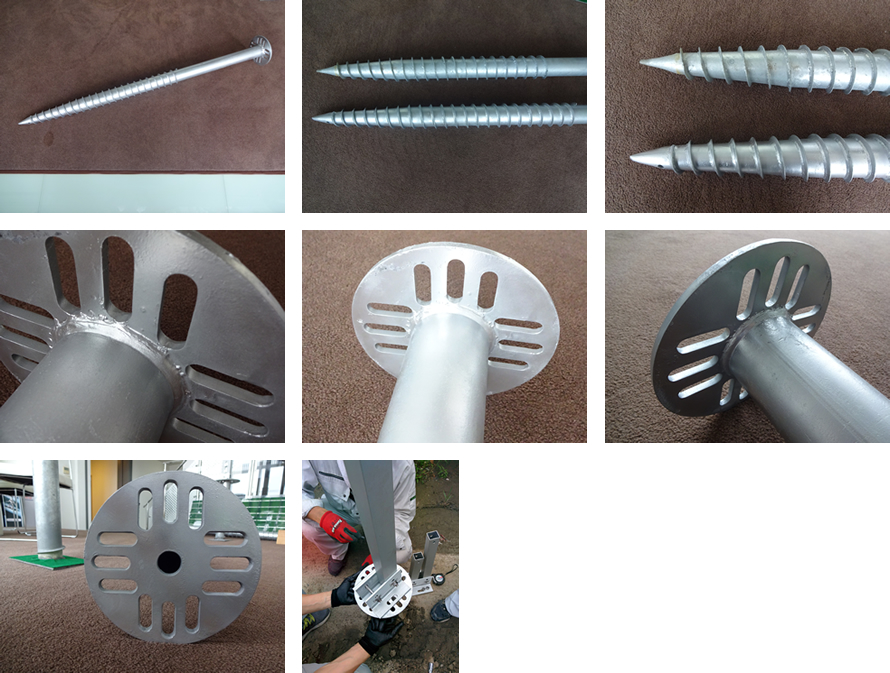

Newly introduced ground screw
Our original product - new ground screw!
3 new performances
- A newly developed design makes it possible to control an adjuster finely in all 4 directions.
- Quality improvement and Partial reinforcement of the joint part
- New economically-price
>>See this booklet as for more information
Fence with pile-driven foundation
Galvanized fence using ground screws, which is economically-priced, instead of concrete foundation.
Simple construction and shortening work period Optimal construction for mount system
Construction process
Specification (Hight=1500mm)
| Name | Materials | Size | |
|---|---|---|---|
| Foudation | Gound screw | steel groud screw, galvanizing coating | 68mm×600mm～ |
| Pole | Round pole | galvanizing steel pole, green coating | 40mm×1500mm～ |
| Fence | Mesh (crisscross) | steel mesh fence (crisscross type),green coating | 4mm×2000mm～ |
Sale and lease of screw pile driver
We also sell or lease screw pile drivers. Please feel free to contact us.
Crane type SK-KJ35
Best choice for mega solar plants of 50 kW or more!
Ground screws more than 50 pieces can be driven in one day! The license of the vehicle-type construction machine is required.
Constructinon process
Manual type Sk-K010
Best choice for solar construction sites of 3kW to 100 kW!
Ground screws more than 20 pieces can be driven with two people in one day! No special licsence required.
Constructinon process
Mount systems on a slope land
This is an example of the mount system installed on a steep slope of 25,°where everyone has difficulty in standing up straight. The system can be installed without changing the land shape. It is very beneficial for the land regarded to be inappropriate to development activities.
